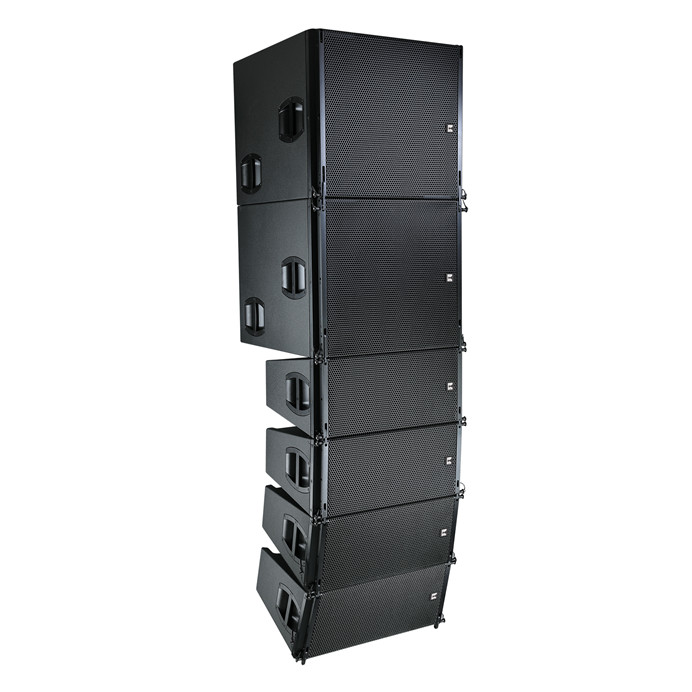

DSC10+DSS

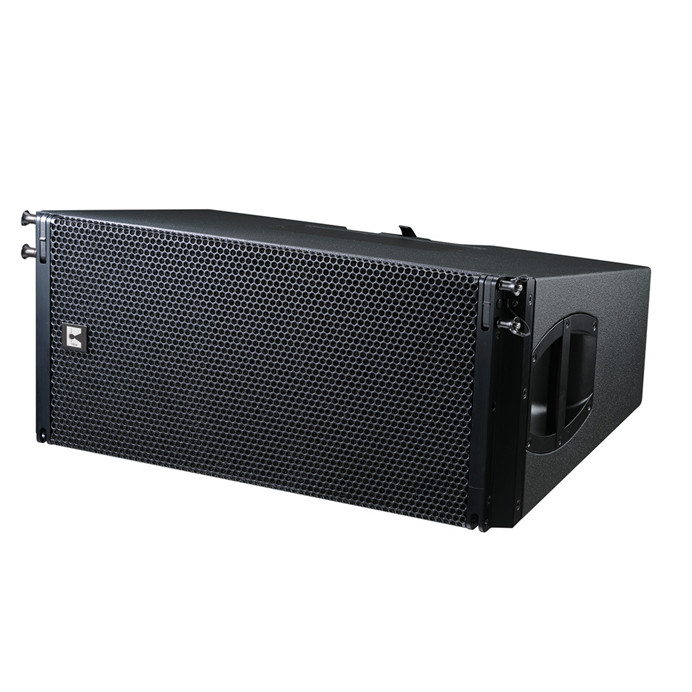

DSC10
Type:2×10" 3-way line array loudspeakers
Frequency range:50HZ ～ 22KHZ,
Coverage (HxV): 80°×10°
Impedance: 8Ω
Max SPL: 131dB
Power AES / peak: 600/2400W
LF:2 ×10" Φ 75mm(ND)
MF:1 ×8" Φ 65mm(ND)
HF:2 ×3" Φ 75mm(ND)
Dimension (W×H×D):700 ×310 ×460mm
27.56x12.20x18.11in
Weight:34kg /74.8lb

Product Detail

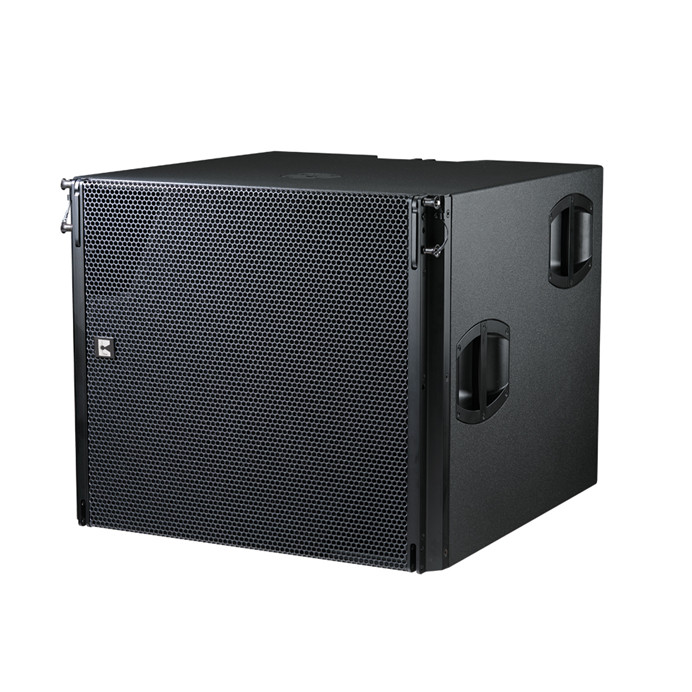

DSS
Type: Front 18" and 12" on the back cardioid line arrays subwoofer
Frequency range:28HZ ～ 180HZ
Impedance 8Ω
Sensitivity(1W at 1m):102dB
Max SPL(1m at SPL):138dB
Power AES / peak:1000W/4000W
LF:1 ×18" Φ 100mm(ND)
1 ×12" Φ100mm(ND)
Dimension(W×H×D):700 ×606 ×728mm
27.55x23.85x28.66 in
Weight:75kg /165lb
